| Place of Origin: | China |
|---|---|
| Brand Name: | Coprite |
| Certification: | GS,CB,CE,ISO9001 |
| Model Number: | FRP |
| Minimum Order Quantity: | 5 SETS |
| Price: | 1-555USD/PC |
| Packaging Details: | carton box |
| Delivery Time: | 25-61 days |
| Payment Terms: | L/C, T/T, Western Union |
| Operating Pressure: | 150psi,100PSI | Operating Temperature: | 150F |
|---|---|---|---|
| Size: | 935,942,1035,1465,2162,2472,3672 | Cleaning: | Automatic And Manual |
| Packaging Details: | Standard Carton | Color: | Blue / Nature/White/black |
| Highlight: | whole house water softener,electronic water softeners |
||

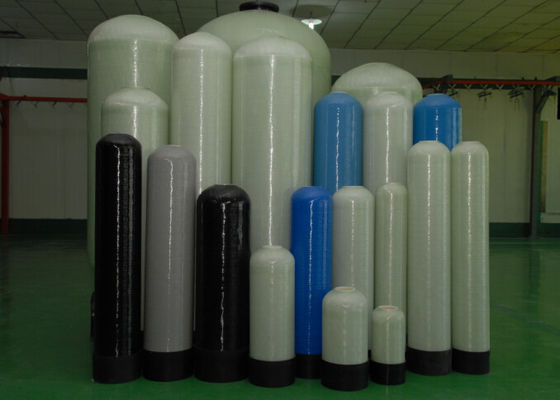

Water Filter FRP Fiberglass Pressure Tank Vessel for Water Treatment
1. Description: FRP Pressure Vessel water filter softener
2. Specifications:
1) FRP tank is made of the advanced winding technique, with entire shaping internal bladder.
2) Compared with the same models, it has the characteristics of corrosion resisting, good quality, good appearance, convenient transportation installation, good seepage prevention, long using life.
3) Operation pressure is less than 0.6Mpa and operation temperature is less than 49°C
4) FRP tank has upper and under openings, and flange connections, which can form a complete set with control valves in different kinds of models and brands.
5) FRP tanks have many different Models: 871-96126(upper and under openings and side openings), 2.5'', 4'', 6'', 16'', 18'' flange
| Size | A Diameter |
B Height Without Base |
C Height With Base |
outpacking size(mm) | N.W(kg)/CTN | G.W(kg)/CTN | |||||
| (In) | (mm) | (In) | (mm) | (In) | (mm) | (In) | (mm) | ||||
| 07×13 | 170×330 | 7.0 | 181 | 12.6 | 320 | 13.0 | 330 | 210*210*400 | 2.1 | 2.9 | |
| 07×24 | 170×610 | 7.0 | 181 | 24.0 | 610 | 25.4 | 640 | 210*210*700 | 3.7 | 4.3 | |
| 07×35 | 170×890 | 7.0 | 181 | 35.0 | 890 | 36.4 | 920 | 210*210*970 | 2.3 | 2.9 | |
| 08×17 | 200×430 | 8.0 | 206 | 17.0 | 430 | 18.1 | 465 | 230*230*530 | 2.9 | 3.5 | |
| 08×20 | 200×470 | 8.0 | 206 | 19.0 | 470 | 19.5 | 495 | 230*230*650 | 3.2 | 3.85 | |
| 08×35 | 200×890 | 8.0 | 206 | 35.0 | 890 | 36.2 | 920 | 230*230*970 | 4.5 | 5.5 | |
| 08×44 | 200×1115 | 8.0 | 206 | 43.9 | 1115 | 44.9 | 1140 | 230*230*1180 | 4.8 | 6 | |
| 09×35 | 220×890 | 9.0 | 232 | 35.0 | 890 | 35.8 | 910 | 260*260*970 | 5.9 | 7 | |
| 09×40 | 220×1005 | 9.0 | 232 | 40.0 | 1005 | 40.4 | 1025 | 260*260*1090 | 5.3 | 6.5 | |
| 09×42 | 220×1065 | 9.0 | 232 | 42.0 | 1065 | 43.0 | 1085 | 260*260*1130 | 7.3 | 8.5 | |
| 09×48 | 220×1215 | 9.0 | 232 | 48.0 | 1215 | 48.4 | 1230 | 260*260*1310 | 6.4 | 7.6 | |
| 10×17 | 240×430 | 10.0 | 257 | 17.0 | 430 | 18.1 | 460 | 290*290*500 | 3.4 | 4.4 | |
| 10×35 | 240×890 | 10.0 | 257 | 35.0 | 890 | 36.0 | 915 | 290*290*960 | 5.2 | 6.7 | |
| 10×44 | 240×1115 | 10.0 | 257 | 43.9 | 1115 | 45.1 | 1145 | 290*290*1180 | 7.3 | 8.5 | |
| 10×54 | 240×1370 | 10.0 | 257 | 54.1 | 1375 | 55.3 | 1405 | 290*290*1460 | 7 | 9 | |
| 12×48 | 300×1215 | 12.0 | 308 | 48.0 | 1215 | 49.4 | 1255 | 340*330*1300 | 8.5 | 10.5 | |
| 12×52 | 300×1320 | 12.0 | 308 | 52.0 | 1320 | 53.3 | 1355 | 340*330*1400 | 9 | 11 | |
| 12×52 | 300×1320 | 12.0 | 308 | 52.0 | 1320 | 52.8 | 1345 | 340*330*1400 | 12 | 14.85 | |
| 12×65 | 300×1320 | 12.0 | 308 | 52.0 | 1320 | 65.9 | 1675 | 340*330*1730 | 11.9 | 14 | |
| 13×54 | 330×1370 | 13.0 | 334 | 54.0 | 1370 | 55.3 | 1405 | 370*370*1460 | 11 | 14 | |
| 14×65 | 350×1620 | 14.0 | 360 | 63.8 | 1620 | 65.6 | 1665 | 390*390*1730 | 15 | 18 | |
| 14×65 | 350×1620 | 14.0 | 360 | 63.8 | 1620 | 65.6 | 1665 | 390*390*1730 | 15 | 18 | |
| 16×65 | 400×1620 | 16.0 | 410 | 63.8 | 1620 | 64.6 | 1640 | 440*440*1730 | 21 | 24 | |
| 16×65 | 400×1620 | 16.0 | 410 | 63.8 | 1620 | 64.6 | 1640 | 440*440*1730 | 21 | 24 | |
| 16×65 | 400×1620 | 16.0 | 410 | 63.8 | 1620 | 72.3 | 1840 | 440*440*1920 | 22 | 25 | |
| 18×65 | 450×1620 | 18.0 | 460 | 63.8 | 1620 | 72.2 | 1835 | 500*500*1960 | 34.4 | 48 | |
| 18×65 | 450×1620 | 18.0 | 460 | 63.8 | 1620 | 72.2 | 1835 | 500*500*1960 | 34.4 | 48 | |
| 20×72 | 500×1800 | 20.4 | 510 | 71.0 | 1775 | 80.0 | 2000 | 550*550*2060 | 43 | 57 | |
| 20×72 | 500×1800 | 20.4 | 510 | 71.0 | 1775 | 80.0 | 2000 | 550*550*2060 | 43 | 57 | |
| 21×62 | 530×1600 | 21.7 | 550 | 65.0 | 1625 | 71.1 | 1830 | 580*580*1930 | 40 | 50 | |
| 21×62 | 530×1600 | 21.7 | 550 | 65.0 | 1625 | 71.1 | 1830 | 580*580*1930 | 40 | 50 | |
| 24×72 | 600×1800 | 24.4 | 620 | 71.0 | 1775 | 79.6 | 1990 | 650*650*2050 | 56 | 73 | |
| 24×72 | 600×1800 | 24.4 | 620 | 71.0 | 1775 | 79.6 | 1990 | 650*650*2050 | 56 | 73 | |
| 30×72 | 750×1800 | 30.5 | 775 | 71.2 | 1780 | 79.6 | 1990 | 850*850*2050 | 92 | 100 | |
| 30×72 | 750×1800 | 30.5 | 775 | 71.2 | 1780 | 79.6 | 1990 | 850*850*2050 | 92 | 100 | |
| 30×72 | 750×1800 | 30.5 | 775 | 74.2 | 1855 | 84.6 | 2115 | 850*850*2050 | 92 | 100 | |
| 30×72 | 750×1800 | 30.5 | 775 | 76.6 | 1915 | 87.0 | 2175 | 850*850*2050 | 92 | 100 | |
| 36×72 | 900×1800 | 36.4 | 925 | 74.2 | 1855 | 85.8 | 2145 | 990*990*2100 | 112.5 | 138.5 | |
| 36×72 | 900×1800 | 36.4 | 925 | 74.2 | 1855 | 85.8 | 2145 | 990*990*2100 | 112.5 | 138.5 | |
| 36×72 | 900×1800 | 36.4 | 925 | 75.0 | 1875 | 85.8 | 2145 | 990*990*2100 | 112.5 | 138.5 | |
| 36×72 | 900×1800 | 36.4 | 925 | 77.4 | 1935 | 88.2 | 2205 | 990*990*2100 | 112.5 | 138.5 | |
| 40×72 | 1000×1800 | 40.8 | 1020 | 78.2 | 1955 | 90.8 | 2270 | 1055*1055*2240 | 122 | 147 | |
| 48×72 | 1200×1800 | 48.8 | 1220 | 79.8 | 1995 | 91.8 | 2295 | 1055*1055*2240 | 156 | 165 | |
| 48×96 | 1200×2400 | 48.8 | 1220 | 96.0 | 2400 | 107.8 | 2695 | 1230*1230*2700 | 220 | 250 | |
| 56×96 | 1400×2400 | 56.8 | 1420 | 96.0 | 2400 | 107.8 | 2695 | 1420*1420*2700 | 260 | 290 | |
| 60×96 | 1500×2400 | 36.4 | 1520 | 102.0 | 2550 | 116.0 | 2900 | 1530*1530*2700 | 300 | 330 | |
